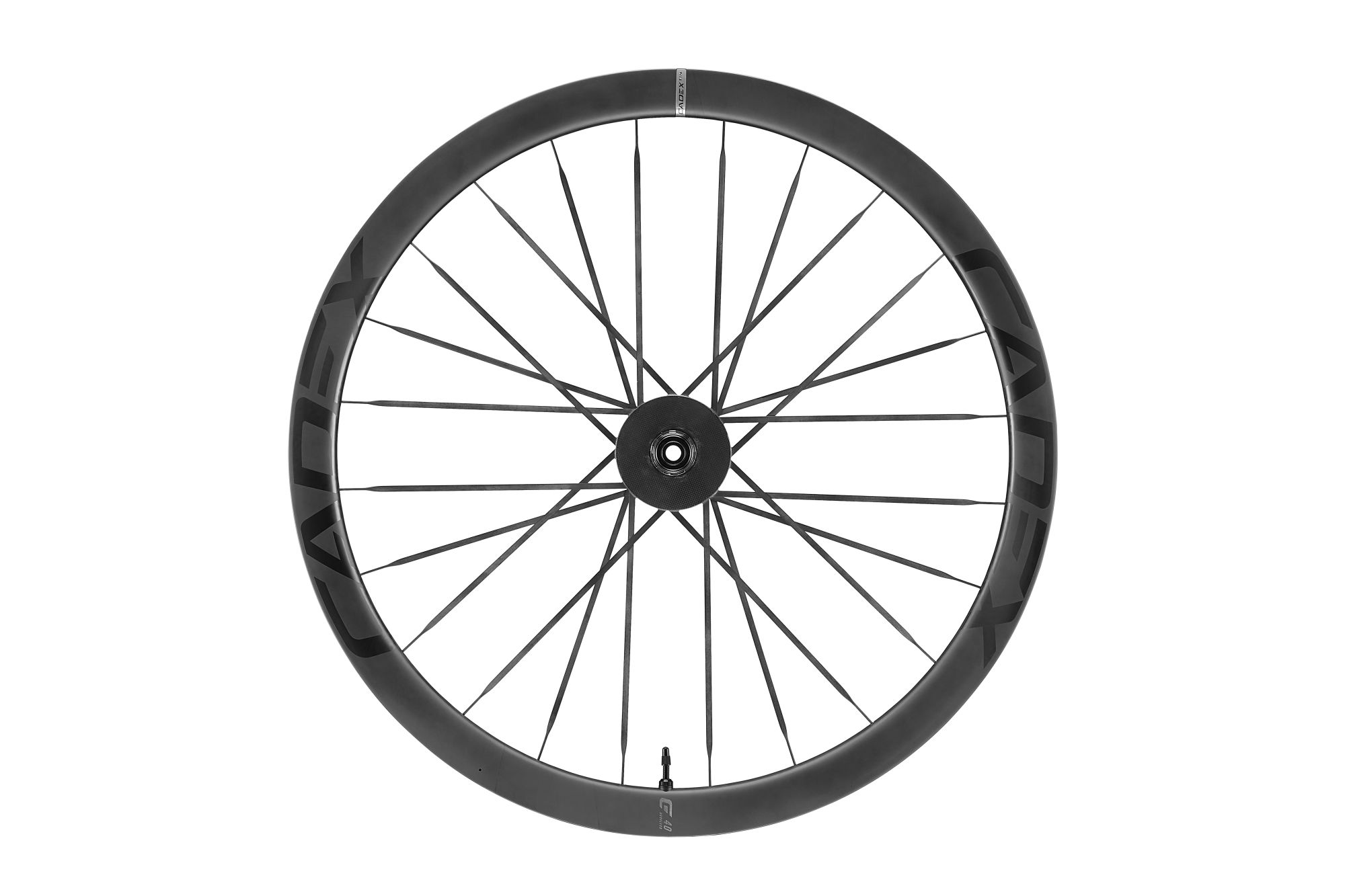

WITH CUTTING-EDGE HUB-AND-SPOKE TECHNOLOGY AND A NEW 40MM RIM PROFILE, THIS IS THE LIGHTEST WHEELSYSTEM EVER CREATED BY CADEX. SUPER AERO BLADED CARBON SPOKES ARE SEAMLESSLY INTEGRATED WITH THIN AERO HUB FLANGES TO REDUCE WEIGHT AND DRAG, WHILE DYNAMIC BALANCED LACING TECHNOLOGY SETS THE SPOKES AT A WIDER BRACING ANGLE TO STABILISE TENSION UNDER FORCE AND BOOST POWER TRANSFER. THE 40MM DEEP CARBON RIMS HELP KEEP OVERALL WEIGHT AT JUST 1249 GRAMS, AND A BROAD 22.4MM HOOKLESS INNER RIM WIDTH OFFERS BETTER TYRE SIDEWALL SUPPORT AND IMPROVED CONTROL.

FEATURES

• INTEGRATED SPOKE, HUB FLANGE AND AERO HUB DESIGN FOR OPTIMAL WEIGHT SAVINGS, BETTER POWER TRANSFER, AND IMPROVED AERODYNAMICS.
• CADEX HOOKLESS RIM TECHNOLOGY WITH OPTIMISED CARBON LAYUP IMPROVES DURABILITY AND TIRE PERFORMANCE AT A SUPERLIGHT WEIGHT.
• HIGH-TENSILE-STRENGTH INTEGRATED CADEX SUPER AERO SPOKES WITH HIDDEN NIPPLES AND INDEPENDENT INTERNAL SPOKE TENSION ADJUSTMENT MINIMISE LATERAL FLEX FOR MORE EFFICIENT ACCELERATION AND CLIMBING.
• DYNAMIC BALANCED LACING TECHNOLOGY SETS SPOKES AT A WIDER BRACING ANGLE TO STABILIZE SPOKE TENSION LEVELS UNDER PEDALING FORCE, PRODUCING A STIFFER, MORE EFFICIENT WHEEL WITH OUTSTANDING POWER TRANSFER.
• 48-TOOTH RATCHET ENGAGEMENT IN THE CADEX R3-C48 AERO HUB OFFERS MORE IMMEDIATE POWER TRANSFER.
• CADEX RATCHET WAVE SPRING ENSURES THE OUTER AND INNER RATCHET RINGS ENGAGE WITH CONSISTENT AND EVEN FORCE FOR SMOOTHER ACTION AND BETTER ROLLING EFFICIENCY.
• BROAD 22.4MM INNER RIM WIDTH CREATES A ROUNDER TIRE PROFILE AND INCREASED TIRE CONTACT PATCH FOR BETTER SIDEWALL SUPPORT, IMPROVED HANDLING, AND LESS RIDER FATIGUE.
• 40MM RIM PROFILE DELIVERS EXCEPTIONAL STABILITY AND AERO BENEFITS FOR ALL-DAY EFFORTS.
• IN-MOLD CARBON SURFACE GRAPHIC TECHNOLOGY BLENDS CADEX LOGOS INTO THE CARBON RIM SURFACE WITHOUT THE NEED FOR ETCHING OR DECALS.

SPECIFICATION

• RIM MATERIAL: CARBON
• RIM TYPE: HOOKLESS
• TUBELESS: CADEX TUBELESS SYSTEM (RIM TAPE AND VALVE KIT INCLUDED)
• SUGGESTED TIRE SIZE: 700 X 25C – 700 X 32C
• RIM HEIGHT: 40MM
• RIM OUTER WIDTH: 28MM
• RIM INNER WIDTH: 22.4MM
• ETRTO: 622-22
• FRONT HUB: CADEX R3 , CENTERLOCK ONE-PIECE INTEGRATED HUB AND SPOKES
• REAR HUB: CADEX R3-C48, RATCHET DRIVER, CENTERLOCK ONE-PIECE INTEGRATED HUB AND SPOKES
• HUB COMPATIBILITY: SHIMANO / SRAM XDR / CAMPAGNOLO N3W
• BEARINGS: CERAMIC
• FRONT AXLE: 100X12MM THRU AXLE
• REAR AXLE: 142X12MM THRU AXLE
• FRONT SPOKES: SUPER AERO CARBON SPOKE
• FRONT LACING: DBL, 16H
• REAR SPOKES: SUPER AERO CARBON SPOKE
• REAR LACING: DBL, 24H
• NIPPLE: HIDDEN INTEGRATED ALLOY NIPPLE
• WARRANTY: LIFETIME (FOR REGISTERED ORIGINAL OWNERS)
• INCIDENT REPLACEMENT: 5 YEARS (FOR REGISTERED ORIGINAL OWNERS)
• WEIGHT (PAIR): 1249G (WITH SHIMANO FREEHUB)
• MAX WEIGHT LIMIT OF WHEELS: 129KG (BIKE+RIDER+KIT)
