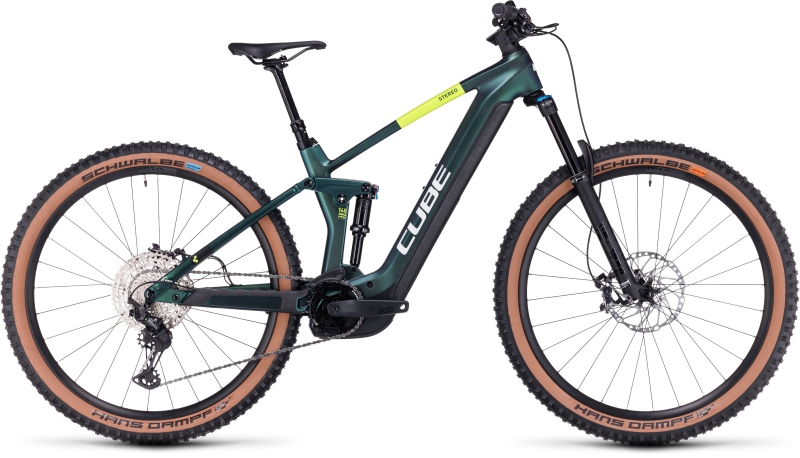

THE TRAIL HUNTER

EVOLUTION NEVER STOPS. THAT'S WHY, ACROSS ALL FRAMES IN OUR SIZESPLIT SYSTEM, THE STEREO HYBRID 140 HPC NOW FEATURES THE ABILITY TO HOUSE UP TO A 750WH BATTERY UNDER ITS DUST- AND SPLASH-PROOF COVER. IT MEANS YOU CAN POWER THE FOURTH-GENERATION BOSCH CX DRIVE UNIT – WITH 85NM OF HILL-DEVOURING TORQUE – ON LONG RIDES, WHATEVER FRAME SIZE FITS YOU BEST. THE BOOST 148 REAR AXLE, LARGE PIVOT BEARINGS AND ALL MOUNTAIN GEOMETRY DELIVER ASSURED HANDLING, EVEN WHEN YOU'RE EXPLORING THE LIMITS OF THE 140MM REAR AND 150MM FRONT TRAVEL. SRAM'S UDH GEAR HANGER HELPS PROTECT AGAINST CRASH DAMAGE AND IS EASILY REPLACEABLE. AND INTEGRATED CABLE ROUTING REDUCES MAINTENANCE AND COMPLEMENTS THE CLEAN LINES OF THE FULL CARBON MAIN FRAME.

THIS IS WHERE THE MAGIC HAPPENS. CUBE'S SUSPENSION KINEMATICS DELIVERS A MAGIC CARPET RIDE, WHILE FOURTH-GENERATION BOSCH POWER AND RELIABLE COMPONENTS GIVE YOU THE TOOLS YOU NEED TO MAKE LIGHT WORK OF ANY TRAIL. DISCOVER NEW POSSIBILITIES, EXPAND YOUR HORIZONS AND OPEN UP THE MOUNTAINS.

FRAME

• FRAME C:62® MONOCOQUE ADVANCED TWIN MOLD TECHNOLOGY, ALUMINIUM 6061 T6 REAR TRIANGLE, EFFICIENT TRAIL CONTROL, FSP 4-LINK, AGILE TRAIL GEOMETRY, BOOST 148, UDH™, FULL INTEGRATED BATTERY, ADVANCED INTERNAL CABLE ROUTING
• SIZE SIZE SPLIT: 27.5: S (16") // 29: M (18"), L (20"), XL (22")

SUSPENSION

• SUSPENSION FORK FOX 34 FLOAT RHYTHM, 2-POSITION SWEEP-ADJUST GRIP DAMPER, TAPERED, 15X110MM, E-BIKE OPTIMIZED, 150MM
• SHOCK FOX FLOAT DPS EVOL, 205X60MM (27.5: 185X55MM), OPEN/MEDIUM/FIRM MODE, TRUNNION MOUNT
• SHOCK HARDWARE TOP: 54MM TRUNNION MOUNT, BOTTOM: 22.2X8MM

E-BIKE SYSTEM

• DRIVE UNIT BOSCH DRIVE UNIT PERFORMANCE CX GENERATION 4 (85NM) CRUISE (250WATT), SMART SYSTEM
• BATTERY BOSCH POWERTUBE 750
• REMOTE BOSCH LED REMOTE
• DISPLAY BOSCH KIOX 300
• CHARGER BOSCH 4A

DRIVETRAIN & BRAKES

• BRAKE SYSTEM SHIMANO XT BR-M8120, HYDR. DISC BRAKE (203/203)
• REAR DERAILLEUR SHIMANO XT RD-M8100-SGS, SHADOWPLUS, 12-SPEED
• SHIFTERS SHIMANO DEORE SL-M6100-IR, DIRECT ATTACH, RAPIDFIRE-PLUS
• CRANKSET ACID E-CRANK, 165MM (27.5: 36T // 29: 34T)
• CHAIN GUIDE REVERSE FLIP-GUIDE E-CHAIN GUIDE, DIRECT MOUNT, GEN4
• CASSETTE SHIMANO DEORE CS-M6100, 10-51T
• CHAIN SHIMANO CN-M6100

COCKPIT

• HANDLEBAR NEWMEN EVOLUTION SL 318.25, 780MM
• STEM CUBE PERFORMANCE STEM E-MTB, 31.8MM
• GRIPS ACID DISRUPT, SOFT COMPOUND
• HEADSET ACROS AZF-1035, ICR (INTEGRATED CABLE ROUTING), BLOCKLOCK 120°, TOP ZERO-STACK 1 1/2" (ZS 56MM), BOTTOM ZERO-STACK 1 1/2" (ZS 56MM)

WHEELS

• WHEELSET NEWMEN PERFORMANCE 30, 28/28 SPOKES, 15X110MM/12X148MM, TUBELESS READY
• FRONT TYRE SCHWALBE HANS DAMPF, ADDIX SOFT, SUPER TRAIL, TUBELESS EASY, 2.6
• REAR TYRE SCHWALBE HANS DAMPF, ADDIX SPEEDGRIP, SUPER TRAIL, TUBELESS EASY, 2.6

FINISHING KIT

• SEAT POST CUBE DROPPER POST, HANDLEBAR LEVER, INTERNAL CABLE ROUTING, 31.6MM
• SADDLE NATURAL FIT VENEC

PRODUCT INFORMATION

• WEIGHT 24,1 KG
• COLOUR GOBLIN´N´YELLOW
