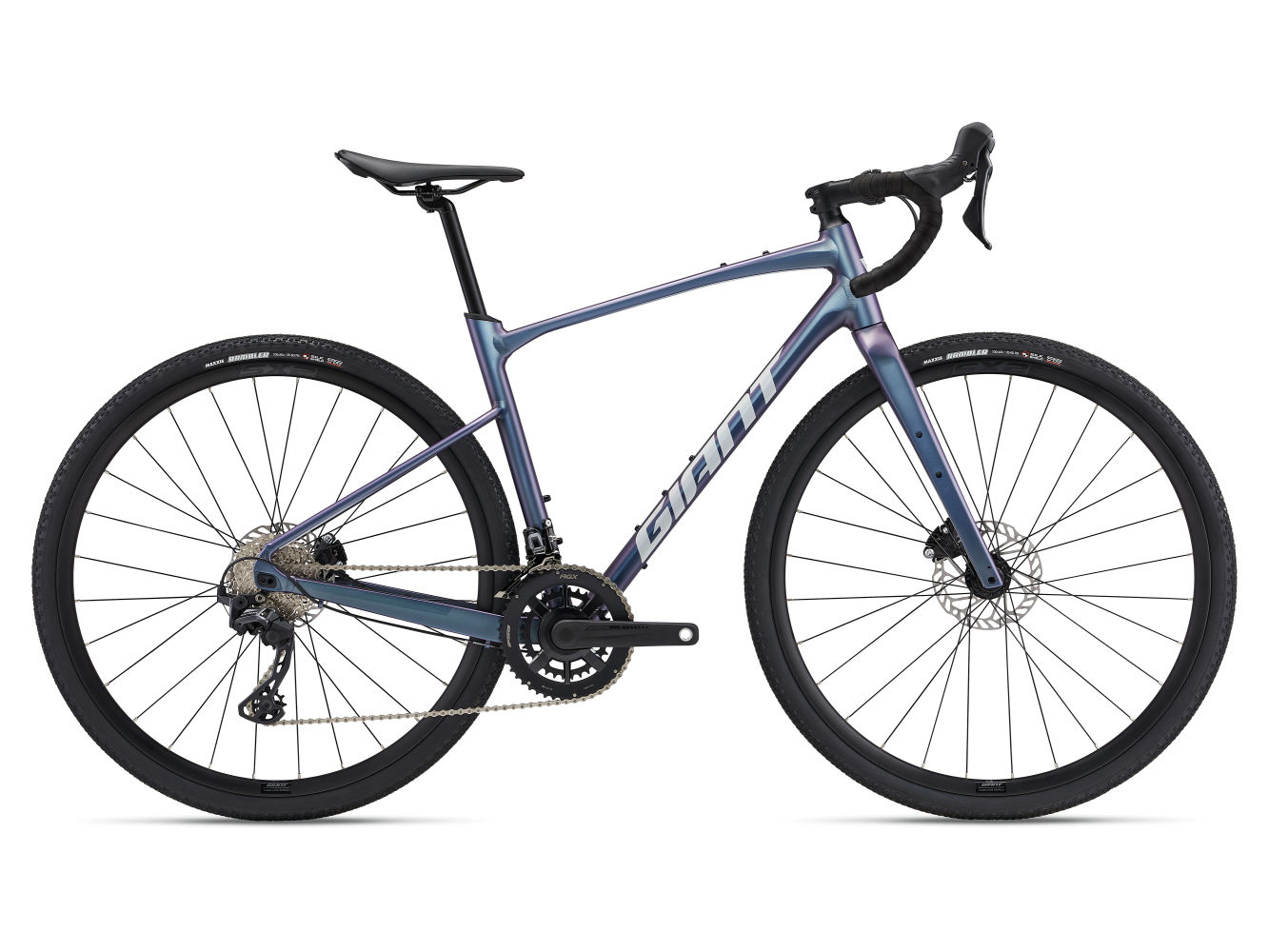

RIDE ROADS, GRAVEL OR DIRT WITH THIS ALL-NEW ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.

KEY PERFORMANCE FACTORS

CONFIDENT HANDLING

FRAME IS DESIGNED WITH ENDURANCE POSITIONING AND SHORTER CHAINSTAYS FOR PRECISE HANDLING, AGILITY AND CONTROL. A LONGER REACH, SHORTER STEM AND LOWER BOTTOM BRACKET DROP IMPROVES STABILITY ON RUGGED TERRAIN.

TUNED COMPLIANCE

NEW FRAME FEATURES THINNER, DROPPED SEATSTAYS TO ABSORB ROAD SHOCKS AND VIBRATIONS. D-FUSE HANDLEBAR AND SEATPOST WORK AS A SYSTEM TO ADD COMPLIANCE WITHOUT SACRIFICING STIFFNESS WHILE CORNERING, SPRINTING OR CLIMBING.

ADAPTABLE TO THE TERRAIN

A FLIP CHIP ON THE REAR DROPOUT ADJUSTS THE WHEELBASE SHORT FOR QUICKER HANDLING AND ACCELERATION, OR LONG FOR IMPROVED STABILITY AT SPEED. THE LONG SETTING ALLOWS FOR LARGER DIAMETER TYRES UP TO 53MM. YOU CAN CHOOSE THE INCLUDED D-FUSE SEATPOST FOR MAXIMUM COMPLIANCE, OR SWITCH TO A 30.9MM ROUND OR DROPPER POST.

HIGHLIGHTS

THE ALL-NEW REVOLT FEATURES A LIGHTWEIGHT ALUXX ALUMINUM FRAME WITH UPDATED GRAVEL GEOMETRY INCLUDING A LONGER REACH AND LOWER BOTTOM BRACKET FOR ADDED STABILITY. A FLIP CHIP ON THE REAR DROPOUT ADJUSTS WHEELBASE AND TIRE CLEARANCE, AND YOU CAN CHOOSE THE INCLUDED D-FUSE SEATPOST FOR MAXIMUM COMPLIANCE OR SWITCH TO A 30.9MM ROUND OR DROPPER POST. THE FRAME IS INTEGRATED FOR DISC BRAKES AND IT HAS CLEARANCE FOR LARGER TIRES UP TO 53MM.

SPECS

• SIZES - S, M, ML, L, XL
• COLOURS - BLUE DRAGONFLY
• FRAME - ALUXX-GRADE ALUMINUM, 12X142MM THRU-AXLE, DISC, FLIP CHIP DROPOUT
• FORK - ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12MM THRU-AXLE, DISC
• SHOCK - N/A
• HANDLEBAR - GIANT CONTACT XR D-FUSE, 31.8MM S:42CM, M:44CM, M/L:44CM, L:46CM, XL:46CM
• GRIPS - VELO CORK TAPE WITH GEL
• STEM - GIANT CONTACT, 8-DEGREE S:60MM, M:70MM, M/L:80MM, L:80MM, XL:90MM
• SEATPOST - GIANT D-FUSE, ALLOY, 14MM OFFSET
• SADDLE - GIANT APPROACH
• PEDALS - N/A
• SHIFTERS - SHIMANO GRX RX-820, 2X12
• FRONT DERAILLEUR - SHIMANO GRX RX-820
• REAR DERAILLEUR - SHIMANO GRX RX-820
• BRAKES - SHIMANO GRX RX-610 HYDRAULIC, GIANT MPH ROTORS [F]160MM, [R]160MM
• BRAKE LEVERS - SHIMANO GRX RX-820 HYDRAULIC
• CASSETTE - SHIMANO 105, 11X34
• CHAIN - KMC X11 WITH MISSING LINK
• CRANKSET -  S:170MM, M:172.5MM, M/L:172.5MM, L:175MM, XL:175MM
• BOTTOM BRACKET -
• RIMS - GIANT S-X2 DISC WHEELSET
• HUBS - GIANT S-X2 DISC WHEELSET
• SPOKES - GIANT S-X2 DISC WHEELSET
• TYRES - GIANT CROSSCUT AT 1, 700X38C, TUBELESS
• EXTRAS - FACTORY TUBELESS SET UP, 53MM MAX TYRE SIZE IN "LONG" FLIP CHIP POSITION, 42MM MAX TIRE SIZE IN "SHORT" FLIP CHIP POSITION
