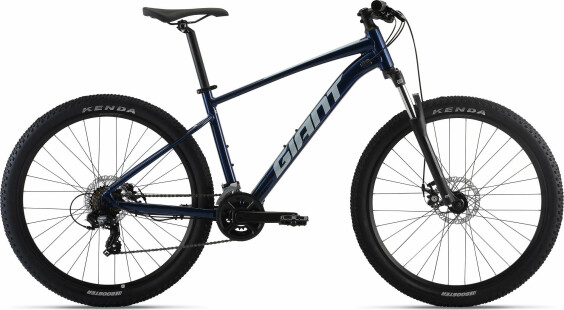

PUSH THE PACE ON CLIMBS, LET LOOSE ON THE DESCENTS. THIS ALUMINIUM HARDTAIL GIVES YOU A FEEL FOR THE TRAIL WITH BALANCED, CONFIDENT HANDLING AND A PLUSH SUSPENSION FORK.

KEY PERFORMANCE FACTORS

PROVEN ALLOY PERFORMANCE

ALUXX ALUMINIUM FRAMESET IS HAND-BUILT IN-HOUSE BY THE WORLD LEADER IN ALUMINIUM ENGINEERING.

BALANCE AND STABILITY

FRAME GEOMETRY IS DESIGNED TO OPTIMIZE THE BALANCE AND ROLL-OVER CAPABILITIES OF 29-INCH WHEELS OR THE LIVELINESS OF 27.5-INCH WHEELS (DEPENDING ON FRAME SIZE).

XC CONTROL

SUSPENSION FORK OFFERS EITHER 80MM OR 100MM OF SMOOTH TRAVEL FOR ADDED XC CONTROL.

SPECS

• SIZES - 27.5: XS,S,M,L, 29: S,M,L,XL,XXL
• COLOURS - METALLIC NAVY
• FRAME - ALUXX-GRADE ALUMINUM, DISC
• FORK - SR SUNTOUR XCE, STEEL STEERER XS: 80MM TRAVEL (27.5) S: 80MM TRAVEL (27.5) / 100MM TRAVEL (29) M: 100MM TRAVEL (27.5) / 100MM TRAVEL (29) L: 100MM TRAVEL (27.5) / 100MM TRAVEL (29) XL: 100MM TRAVEL (29) XXL: 100MM TRAVEL (29)
• SHOCK - N/A
• HANDLEBAR - GIANT CONNECT TRAIL, 31.8MM XS: 730MM (27.5) S: 780MM (27.5) / 780MM (29) M: 780MM (27.5) / 780MM TRAVEL (29) L: 780MM (27.5) / 780MM (29) XL: 780MM (29) XXL: 780MM (29)
• GRIPS - GIANT SOLE-O
• STEM - GIANT SPORT, 7-DEGREE XS: 40MM (27.5) S: 50MM (27.5) / 50MM (29) M: 60MM (27.5) / 60MM TRAVEL (29) L: 70MM (27.5) / 70MM (29) XL: 80MM (29) XXL: 90MM (29)
• SEATPOST - GIANT SPORT, 30.9 XS: 300MM (27.5) S: 300MM (27.5) / 375MM (29) M: 375MM (27.5) / 375MM TRAVEL (29) L: 375MM (27.5) / 375MM (29) XL: 375MM (29) XXL: 375MM (29)
• SADDLE - GIANT CUSTOM
• PEDALS - MTB PLATFORM
• SHIFTERS - SHIMANO SL-M315, 2X7
• FRONT DERAILLEUR - SHIMANO M315
• REAR DERAILLEUR - SHIMANO TOURNEY
• BRAKES - TKB-172, MECHANICAL [F]180MM, [R]160MM ROTORS
• BRAKE LEVERS - RS360A, MECHANICAL
• CASSETTE - SHIMANO MF-TZ500, 14-28 CHAIN - KMC Z7
• CRANKSET - PROWHEEL FORGED, 22/36 XS: 165MM (27.5) S: 170MM (27.5) / 170MM (29) M: 170MM (27.5) / 175MM TRAVEL (29) L: 175MM (27.5) / 175MM (29) XL: 175MM (29) XXL: 175MM (29)
• BOTTOM BRACKET - PROWHEEL CARTRIDGE
• RIMS - GIANT GX03V 29 OR 27.5, ALLOY, DOUBLE WALL, 21MM INNER WIDTH
• HUBS - ALLOY, SEALED BEARING
• SPOKES - STAINLESS STEEL
• TYRES - KENDA BOOSTER 27.5 OR 29X2.2", WIRE BEAD
• EXTRAS - 2.4" MAX TIRE SIZE
