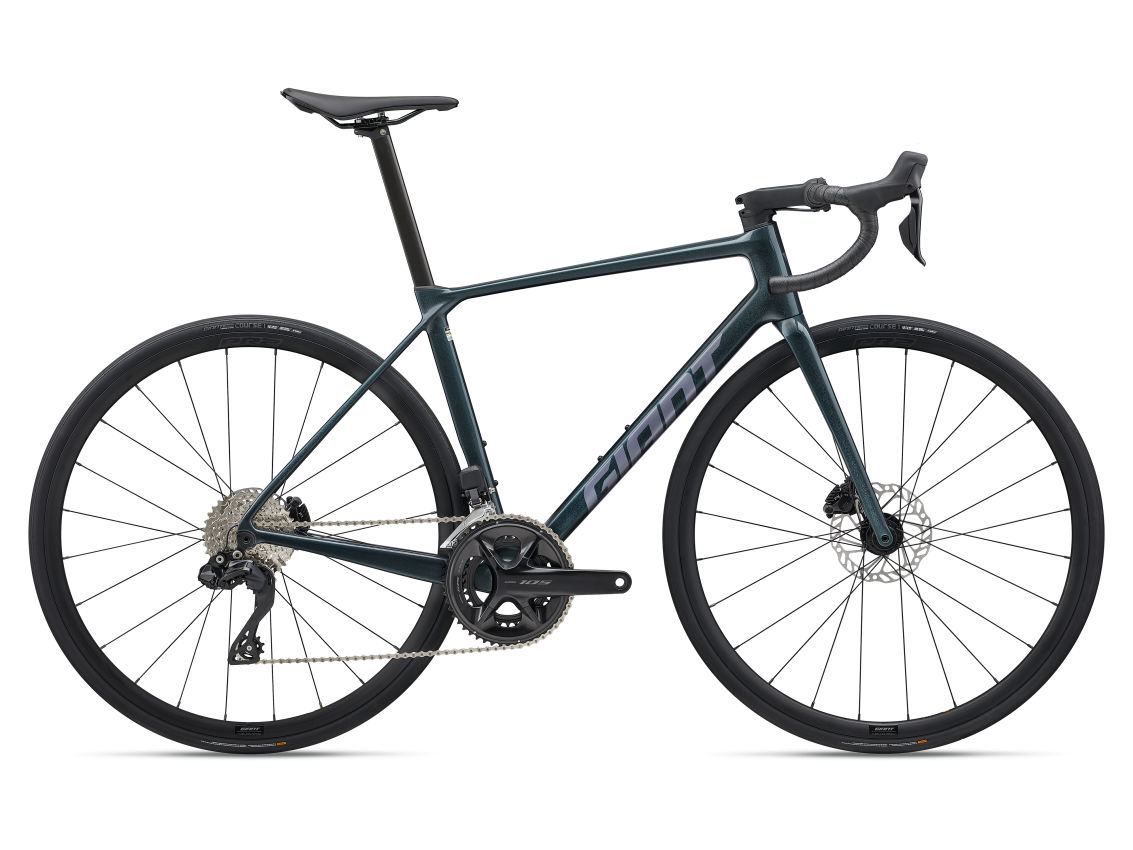

BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.

KEY PERFORMANCE FACTORS

SYSTEM OPTIMISATION

THE FRAMESET, WHEELS, COCKPIT AND OTHER PARTS WERE ENGINEERED, DEVELOPED AND TESTED TOGETHER TO PERFORM AS A SYSTEM. THE ALL-NEW CONTACT AEROLIGHT STEM ALLOWS FOR CABLE ROUTING THAT INTEGRATES THE TOP CAP, CABLES AND SPACERS IN A MORE AERODYNAMIC, USER-FRIENDLY SETUP.

WINNING EFFICIENCY

FEATURING A GREATER STIFFNESS-TO-WEIGHT RATIO THAN THE PREVIOUS GENERATION, ALONG WITH NEW AERO TUBE SHAPING AND A LIGHTER OVERALL WEIGHT, THIS UNCOMPROMISING RACE BIKE DELIVERS EXPLOSIVE ACCELERATION AND UNYIELDING PEDALLING STIFFNESS. THE RESULT IS RACE-WINNING PERFORMANCE IN THE MOMENTS THAT COUNT.

INTEGRATED AERODYNAMICS

ALL TUBE SHAPES WERE ENGINEERED AND DEVELOPED USING COMPUTATIONAL FLUID DYNAMICS (CFD) MODELLING AND WIND-TUNNEL TESTING. FROM THE TRUNCATED ELLIPSE SHAPE OF FRAMESET TUBING TO A NEW COCKPIT DESIGN AND COMPONENT INTEGRATION, IT ALL ADDS UP TO A MORE STREAMLINED PROFILE THAT IMPROVES OVERALL AERO PERFORMANCE COMPARED TO THE PREVIOUS GENERATION.

MADE FASTER

NEWLY INTEGRATED COMPONENTS INCLUDING THE CONTACT AEROLIGHT STEM CREATE A SLEEKER, MORE AERO PROFILE. THE VARIANT SEATPOST ADDS JUST ENOUGH COMPLIANCE FOR A BALANCED, RACE-TUNED FEEL ON THE ROAD, WHILE GENEROUS TYRE CLEARANCE (UP TO 33MM) AND COMPLIANT WHEELS KEEP YOU ROLLING WITH SPEED ON SMOOTH OR BUMPY ROADS.

• SIZES - XS, S, M, ML, L, XL
• COLOURS - GLOSS ASPHALT GREEN/MERCURY
• FRAME - ADVANCED-GRADE COMPOSITE 12X142MM THRU-AXLE, DISC
• FORK - ADVANCED-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE STEERER, 12X100MM THRU-AXLE, DISC
• HANDLEBAR - GIANT CONTACT
• GRIPS - GIANT STRATUS LITE 2.0 WITH GEL
• STEM - GIANT CONTACT AEROLIGHT
• SEATPOST - GIANT VARIANT, COMPOSITE, -5/+15MM OFFSET
• SADDLE - GIANT APPROACH 7MM STEEL RAIL, WITH UNICLIP / PARTICLEFLOW TECHNOLOGY
• PEDALS - PEDALS NOT SUPPLIED
• SHIFTERS - SHIMANO 105 DI2 2X12
• FRONT DERAILLEUR - SHIMANO 105 DI2
• REAR DERAILLEUR - SHIMANO 105 DI2
• BRAKES - SHIMANO 105 DI2 HYDRAULIC DISC, MPH 160/140MM ROTORS
• BRAKE LEVERS - SHIMANO 105 DI2 HYDRAULIC DISC
• CASSETTE - SHIMANO 105, 11X34
• CHAIN - KMC X12L-1
• CRANKSET - SHIMANO 105, 36/52
• BOTTOM BRACKET - SHIMANO, PRESSFIT 71
• RIMS - GIANT P-R2 DISC WHEELSET, ALLOY, 22MM INNER WIDTH
• HUBS - GIANT ALLOY, 12MM THRU-AXLE
• SPOKES - SAPIM
• TYRES - GIANT GAVIA COURSE 1 TUBELESS, 700X25C(28MM EFFECTIVE), 60 TPI , FOLDING
• EXTRAS - FACTORY TUBELESS SET UP, 33MM MAX TYRE SIZE
