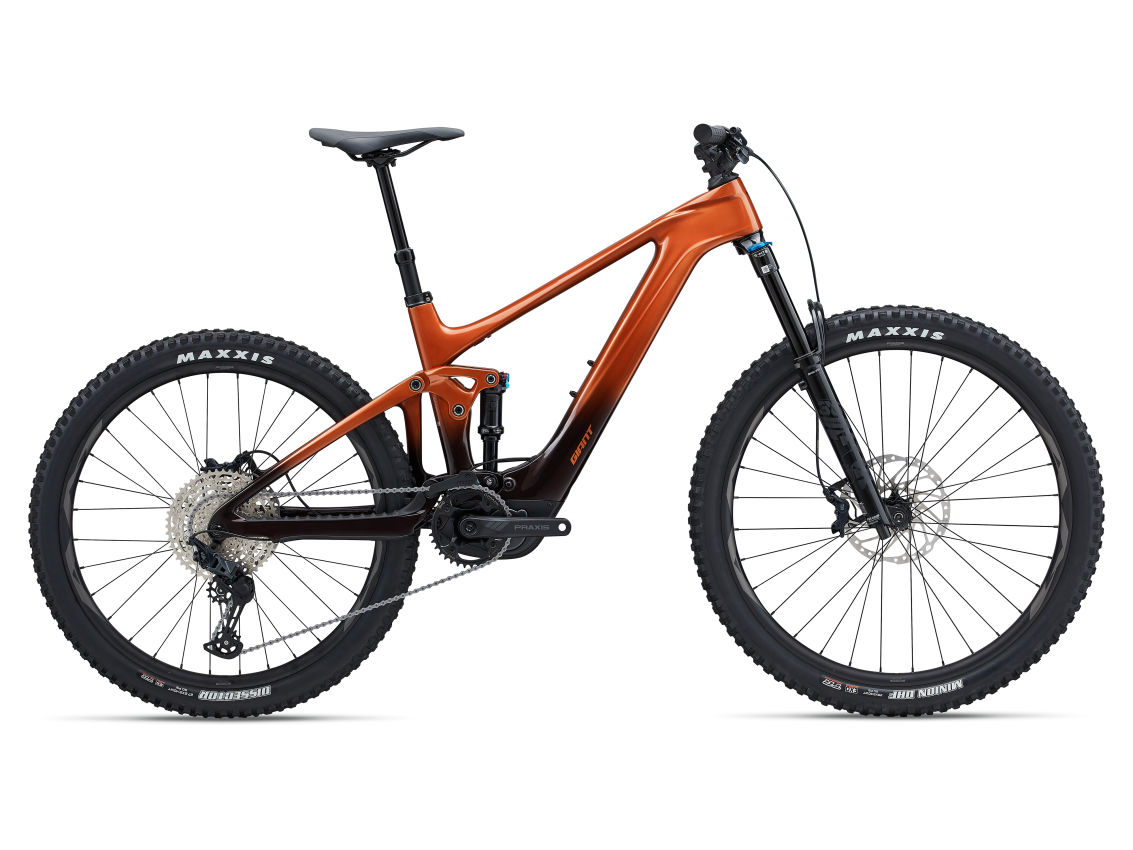

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

KEY PERFORMANCE FACTORS

LIGHTER WEIGHT

NEW ENERGYPAK 400 BATTERY IS DESIGNED TO BE ULTRA SLIM. YOU GET ALL THE POWER BUT IN A SMALLER PACKAGE THAT’S CLEANLY INTEGRATED WITH THE COMPOSITE FRAMESET.

ADVANCED COCKPIT CONTROL

RIDECONTROL ERGO 3 REMOTE ATTACHES TO THE ALL-NEW COMPOSITE GIANT CONTACT SLR INTEGRATED HANDLEBAR. THE CONTROL CAN BE MOUNTED TO EITHER SIDE OF THE HANDLEBAR SO YOU CAN CUSTOMISE YOUR CONTROLS FOR A CLEAN, UNCLUTTERED COCKPIT.

MORE POWER

NEW SYNCDRIVE PRO MOTOR, CO-DEVELOPED WITH YAMAHA, PUTS OUT A POWERFUL 85NM OF TORQUE AND WEIGHS JUST 2.7KG. THE RESULT IS QUICKER ACCELERATION AND CLIMBING CAPABILITIES ON TECHNICAL TRAILS.

HIGHLIGHTS

ALL-NEW COMPOSITE FRAME FEATURES ADJUSTABLE GEOMETRY WITH A NEW FLIP CHIP FEATURE. THE SYNCDRIVE PRO MOTOR DELIVERS 85NM OF TORQUE FOR A SEAMLESS BOOST OF POWER EVEN AT LOW SPEEDS AND ON TECHNICAL TRAILS. THE NEW COMPOSITE GIANT CONTACT SLR TRAIL INTEGRATED HANDLEBAR HAS A SLEEK DESIGN FOR PRECISION OFF-ROAD CONTROL. IT COMES WITH TWO CONTROL CENTRES, THE RIDECONTROL GO MULTIFUNCTIONAL ON/OFF BUTTON ON THE TOP TUBE, AND THE NEW RIDECONTROL ERGO 3 HANDLEBAR-MOUNTED REMOTE.

MOTOR - GIANT SYNCDRIVE PRO2 85NM, POWERED BY YAMAHA, PEDALPLUS 6-SENSOR TECHNOLOGY

CONTROLLER - GIANT RIDECONTROL ERGO3, GRIP INTEGRATED REMOTE

DISPLAY - GIANT RIDECONTROL GO, FRAME INTEGRATED LED CONSOLE OPTIONAL WIRELESS ANT+ DISPLAY

BATTERY - GIANT ENERGYPAK 400WH, ALUMINIUM CASING WITH HIGHEST SAFETY STANDARD (EN50604), CO2 NEUTRAL PRODUCTION, GIANT ENERGYPAK PLUS 200 RANGE EXTENDER COMPATIBLE

CHARGER - GIANT ENERGYPAK 4A SMART CHARGER, 60% IN 1:45 =CONNECTIVITY - GIANT RIDECONTROL APP ENABLED ANT+ WIRELESS DISPLAY SIGNAL WITH E-BIKE PROFILE

SIZES - S, M, L, XL

COLOURS - AMBER GLOW/CORDOVAN

FRAME - ADVANCED-GRADE COMPOSITE FRAME, ADVANCED-GRADE REAR TRIANGLE, AVANCED FORGED COMPOSITE UPPER ROCKER, 140MM MAESTRO SUSPENSION SYSTEM

FORK - FOX 36 FLOAT PERFORMANCE, 150MM TRAVEL, 44MM OFFSET, GRIP 3-POSITION MICRO ADJUST DAMPER, BOOST 110X15QR

SHOCK - FOX DPS PERFORMANCE, EVOL LARGE VOLUME SLEEVE, 3-POSITION LEVER, 185X52.5MM TRUNNION MOUNT, CUSTOM TUNED

HANDLEBAR - GIANT CONTACT SL 35 TRAIL, 35X780MM

GRIPS - GIANT TACTAL PRO-E, TAPERED DESIGN, 135MM Ø28~30MM (S/M) 142MM Ø29~32MM (L/XL), INTEGRATED FOR ERGO3 REMOTE BUTTON LEFT OR RIGHT (OPTIONAL)

STEM - GIANT CONTACT SL 35

SEATPOST - GIANT CONTACT SWITCH, DROPPER, 30,9MM (S:125/M:150/ L&XL:170)

SADDLE - GIANT ROMERO, NEUTRAL

PEDALS - N/A

SHIFTERS - SHIMANO DEORE SLX

FRONT DERAILLEUR - MRP HD2 CO-MOULDED CHAIN GUIDE

REAR DERAILLEUR - SHIMANO DEORE SLX, 12-SPEED, SHADOW+

BRAKES - SHIMANO SLX BR-M7120, 4-PISTON, HYDRAULIC DISC, 203MM

BRAKE LEVERS - SHIMANO SLX, I-SPEC EV

CASSETTE - SHIMANO HG-M6100, 10-51T, 12-SPEED

CHAIN - KMC E.12 SPORT, NP/NP, E-BIKE OPTIMISED

CRANKSET - PRAXIS WAVE 36T COLD FORGED 4130 PREMIUM STEEL PRAXIS E-CADET+ CUSTOM FORGED CRANKARM SET (S:160, M/L: 165, XL:170)

BOTTOM BRACKET - N/A

RIMS - GIANT AM 29" [F]/ 27.5" [R], TUBELESS READY, 30MM INNER WIDTH, E-BIKE OPTIMISED

HUBS - SHIMANO MT410, BOOST, CENTER-LOCK, [F] 110X15 [R] 148X12MM MICRO-SPLINE DRIVE BODY THRU-AXLE

SPOKES - SAPIM E-LITE [R] RACE [F], E-BIKE OPTIMISED

TYRES - MAXXIS MINION DHF 29X2.50" FOLDABLE, TLR, EXO [F] MAXXIS DISSECTOR 27.5X2.4" FOLDABLE, TLR, EXO [R]

EXTRAS - TUBELESS KIT (LIQUID, VALVES, LEVERS, MANUAL, TOOL) INNER TUBE SUPPLIED

LIGHTING - OPTIONAL:- GIANT RECON SERIES E-BIKE LIGHTS AVAILABLE AND DIRECT CONNECTABLE
