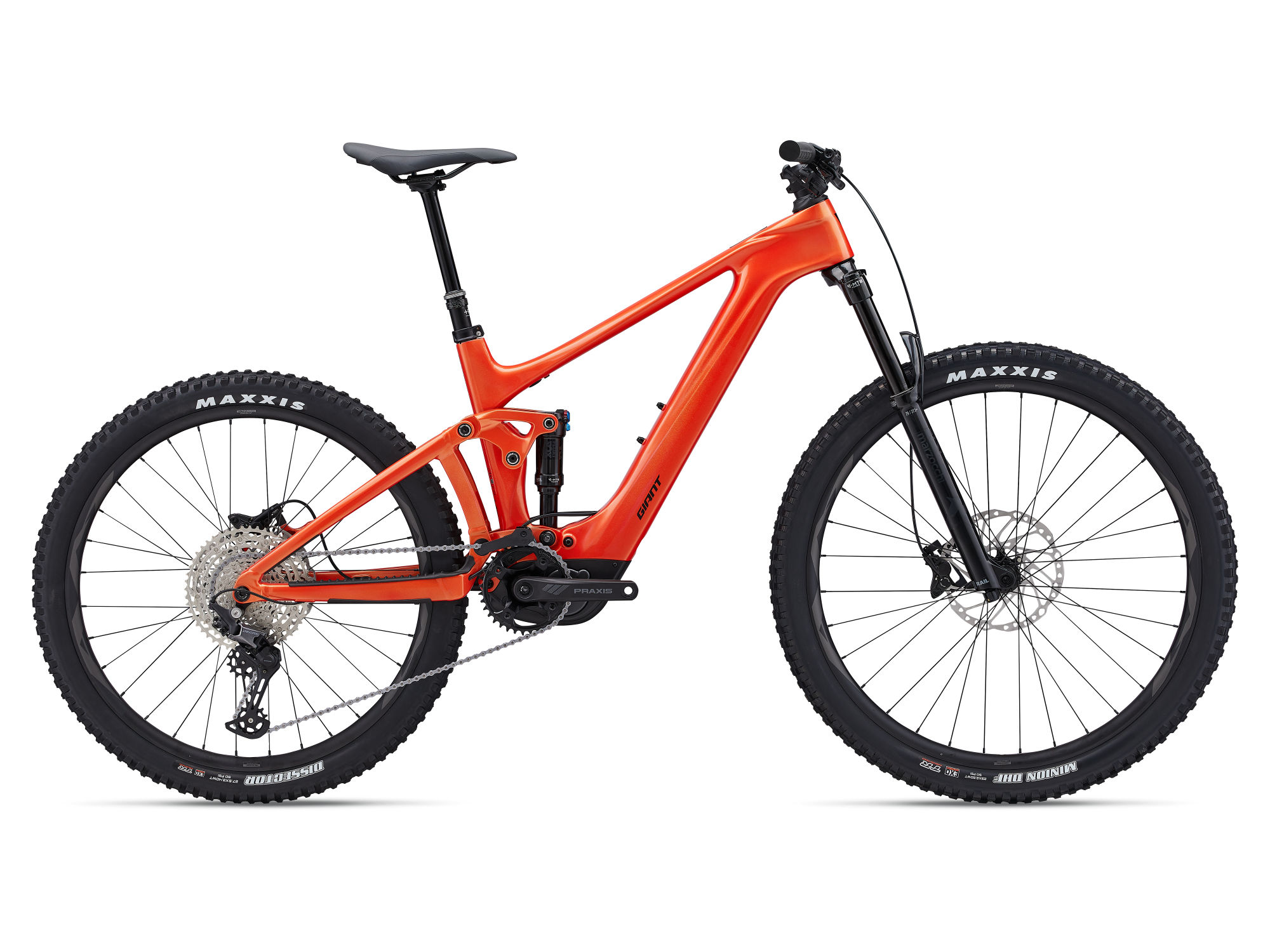

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

KEY PERFORMANCE FACTORS

LIGHTER WEIGHT

NEW ENERGYPAK 400 BATTERY IS DESIGNED TO BE ULTRA SLIM. YOU GET ALL THE POWER BUT IN A SMALLER PACKAGE THAT’S CLEANLY INTEGRATED WITH THE COMPOSITE FRAMESET.

ADVANCED COCKPIT CONTROL

RIDECONTROL ERGO 3 REMOTE ATTACHES TO THE ALL-NEW COMPOSITE GIANT CONTACT SLR INTEGRATED HANDLEBAR. THE CONTROL CAN BE MOUNTED TO EITHER SIDE OF THE HANDLEBAR SO YOU CAN CUSTOMISE YOUR CONTROLS FOR A CLEAN, UNCLUTTERED COCKPIT.

MORE POWER

NEW SYNCDRIVE PRO MAGNESIUM MOTOR FEATURES A MAGNESIUM CASING THAT REDUCES WEIGHT BY 50G. IT WEIGHS JUST 2.5KG AND DELIVERS 85NM OF TORQUE WHILE RETAINING THE INSTANT ENGAGEMENT THAT CHARACTERISES SYNCDRIVE PRO MOTORS. IT’S ALSO ENGINEERED FOR A REDUCED NOISE LEVEL AND QUIET PERFORMANCE.

• MOTOR - GIANT SYNCDRIVE PRO2 85NM, PEDALPLUS 6-SENSOR TECHNOLOGY BATTERY - GIANT ENERGYPAK 400WH, ALUMINIUM CASING WITH HIGHEST SAFETY STANDARD (EN50604), CO2 NEUTRAL PRODUCTION, GIANT ENERGYPAK PLUS 200 RANGE EXTENDER COMPATIBLE
• CHARGER - GIANT ENERGYPAK 4A SMART CHARGER, 60% IN 1:45
• CONTROLLER - GIANT RIDECONTROL ERGO3, GRIP INTEGRATED REMOTE
• DISPLAY - GIANT RIDECONTROL GO, FRAME INTEGRATED LED CONSOLE OPTIONAL WIRELESS ANT+ DISPLAY
• SIZES - S, M, L, XL
• COLOURS - GLOSS HELIOS ORANGE
• FRAME - ADVANCED-GRADE COMPOSITE FRAME, ALUXX SL-GRADE REAR TRIANGLE, ADVANCED FORGED COMPOSITE UPPER ROCKER, 140MM MAESTRO SUSPENSION SYSTEM
• FORK - MARZOCCHI BOMBER Z2 E-TUNED, 29ER, 150MM TRAVEL, 44MM OFFSET, RAIL DAMPER SWEEP-ADJ, KABOLT 110
• SHOCK - FOX FLOAT PERFORMANCE, EVOL LARGE VOLUME SLEEVE, 2POS, 185X52.5MM TRUNNION MOUNT, CUSTOM TUNED, RECOMMENDED SAG: 30%
• HANDLEBAR - GIANT CONTACT SL 35 TRAIL, 35X780MM
• STEM - GIANT CONTACT SL 35
• SEATPOST - TRANZ-X RAD+ 30,9MM, 30MM TRAVEL ADJUSTABLE (S:120-150MM, M:140-170MM, L/XL:170-200MM)
• SADDLE - GIANT ROMERO, NEUTRAL
• PEDALS - PEDALS NOT SUPPLIED
• SHIFTERS - SHIMANO DEORE 1X12
• FRONT DERAILLEUR - MRP HD2 CO-MOULDED CHAIN GUIDE
• REAR DERAILLEUR - SHIMANO DEORE
• BRAKES - SHIMANO BR-MT420, 4-PISTON, HYDRAULIC DISC,203MM [F/R]
• BRAKE LEVERS - SHIMANO DEORE, I-SPEC EV
• CASSETTE - SHIMANO CS-M6100-12, 10-51T, 12-SPEED
• CHAIN - KMC E.12 TURBO, ECOPROTEQ, E-BIKE OPTIMISED
• CRANKSET - PRAXIS N.W. 36T COLD FORGED 4130 PREMIUM STEEL PRAXIS E-CRANKS (Q-FACTOR=168, S:160, M/L:165, XL:170)
• BOTTOM BRACKET - N/A
• RIMS - GIANT AM30, TUBELESS READY, 30MM INNER WIDTH, 29" [F] / 27.5" [R]
• HUBS - SHIMANO MT410 BOOST, CENTER-LOCK, 110X15 [F] 148X12 SHIMANO MICRO-SPLINE DRIVE BODY THRU-AXLE [R]
• SPOKES - SAPIM E-LITE [R] RACE [F], E-BIKE OPTIMISED
• TYRES - MAXXIS MINION DHF 29X2.50" FOLDABLE, TLR, EXO [F]MAXXIS DISSECTOR 27.5X2.4" FOLDABLE, TLR, EXO [R]
• EXTRAS - TUBELESS KIT (LIQUID, VALVES, LEVERS, MANUAL, TOOL) INNER TUBE SUPPLIED
