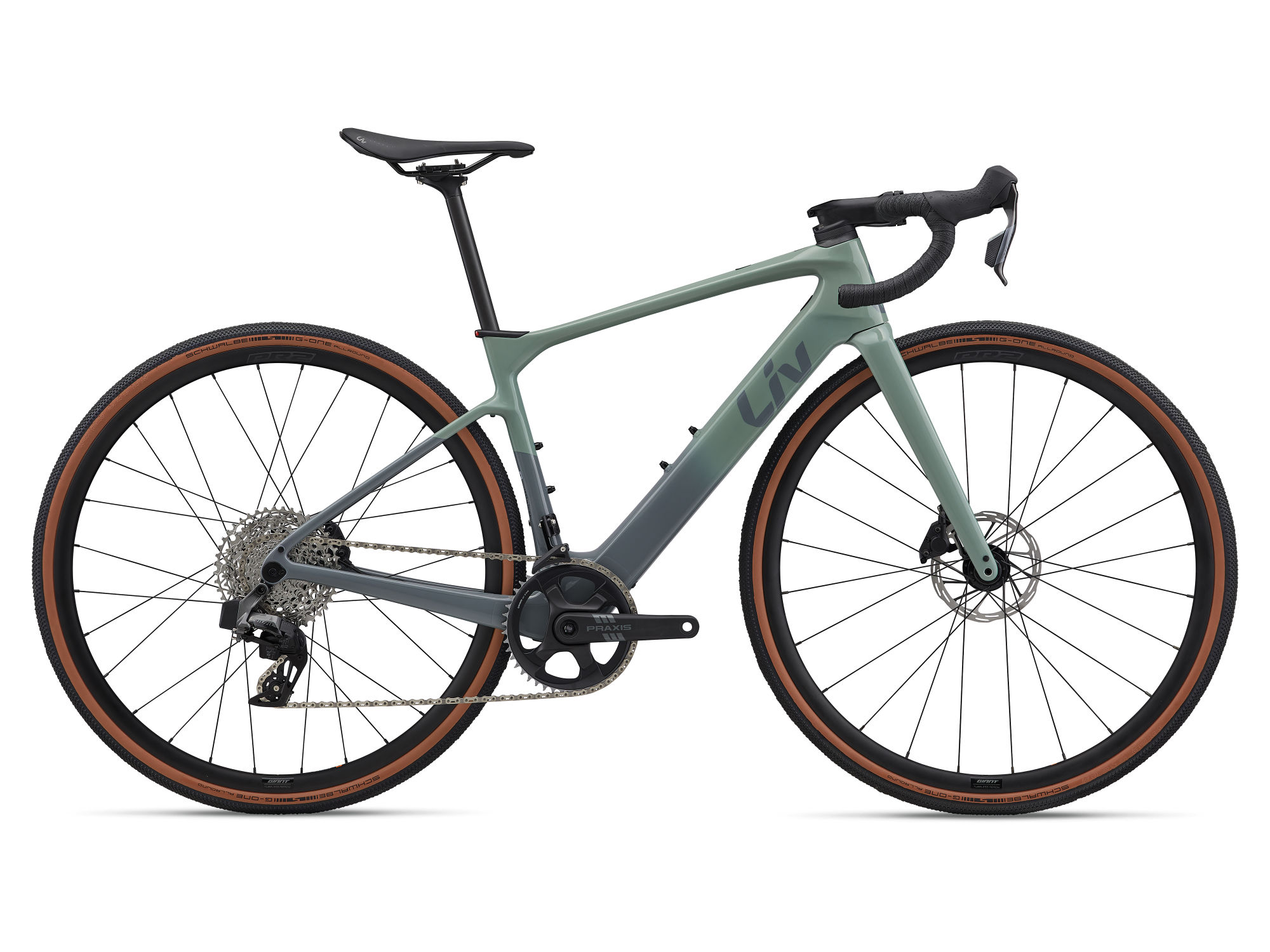

THE DESIGN OF THE AVAIL ADVANCED E+ ELITE AR STEALTHILY CONCEALS ITS POTENT ELECTRIC CAPABILITIES. A COMPACT REAR HUB MOTOR, LIGHTWEIGHT CARBON FRAME AND FORK, HIDDEN CONTROLS, AND INTERNAL CABLE ROUTING IS THE EPITOME OF A BEAUTIFUL, HIGH-END ROAD BIKE THAT LOOKS FAST—EVEN WHEN IT’S NOT MOVING.

KEY PERFORMANCE FACTORS

A NATURAL RIDE

IT LOOKS LIKE AN ANALOG ROAD BIKE AND, BEST OF ALL, IT RIDES LIKE ONE. EXPERIENCE THE REVOLUTIONARY FUSION OF ELECTRIC POWER AND TRADITIONAL ROAD CYCLING WITH OUR NEW E-ROAD EXCLUSIVE RIDING PATTERN. IT PROVIDES THE ULTIMATE SMOOTH MOTOR SUPPORT SO YOUR RIDING EXPERIENCE STILL FEELS AUTHENTIC AND AU NATUREL.

MAXIMUM MILES. MINIMUM FATIGUE.

THE AVAIL ADVANCED E+ ELITE AR PROVIDES UP TO 600WH WITH ITS 400WH MAIN BATTERY AND THE OPTIONAL 200WH RANGE EXTENDER. IT FEATURES AVAIL ENDURANCE GEOMETRY FOR LONG-RIDE COMFORT, WHILE THE LIV D-FUSE HANDLEBAR AND SEATPOST ABSORB ROAD VIBRATIONS, GIVING YOU A SMOOTH AND ENJOYABLE RIDING EXPERIENCE.

DELIVERING POWER & SPEED

THE SYNCDRIVE MOVE PLUS MOTOR IS A POWERFUL REAR HUB MOTOR WITH A MAXIMUM TORQUE OF 30 NM WHICH IS COMPARABLE TO 75 NM IN A MID-DRIVE MOTOR. IT PROVIDES THE MAXIMUM ASSISTED SPEED TO REACH THE SPEED LIMIT OF 45 KM/H / 28 MPH (US), 32 KM/H (CANADA), AND 25 KM/H (IN OTHER REGIONS WORLDWIDE).

SPECIFICATIONS

• MOTOR - SYNCDRIVEMOVE PLUS HUB DRIVE 75NM MAX
• BATTERY - GIANT ENERGYPAK 400WH, ALUMINIUM CASING WITH HIGHEST SAFETY STANDARD (EN50604), CO2 NEUTRAL PRODUCTION, GIANT ENERGYPAK PLUS 200 RANGE EXTENDER COMPATIBLE
• CHARGER - GIANT ENERGYPAK SMART CHARGER 4A
• CONTROLLER - MODE SUPPORT SWITCH FROM SRAM BLIPS
• DISPLAY - GIANT RIDECONTROL GO, FRAME-INTEGRATED LED CONSOLE OPTIONAL WIRELESS ANT+ DISPLAY
• SIZES - S, M, ML, L, XL
• COLOURS - EUCALYPTUS/OCEAN STORM
• FRAME - ADVANCED-GRADE COMPOSITE,12X145 THRU-AXLE
• FORK - ADVANCED SL-GRADE COMPOSITE, FULL-COMPOSITE OVERDRIVE AERO STEERER, 12X100MM THRU-AXLE, DISC
• SHOCK - NA
• HANDLEBAR - LIV CONTACT SL D-FUSE 31.8 ALLOY
• STEM - CONTACT SL AEROLIGHT 31.8 ALLOY
• SEATPOST - GIANT D-FUSE, COMPOSITE, 14MM OFFSET
• SADDLE - LIV APPROACH
• SHIFTERS - SRAM RIVAL AXS
• FRONT DERAILLEUR - N/A
• REAR DERAILLEUR - SRAM RIVAL XPLR AXS
• BRAKES - SRAM RIVAL AXS HRD, PACELINE 160MM 6-BOLS [F/R]
• BRAKE LEVERS - SRAM RIVAL AXS HRD
• CASSETTE - SRAM XPLR XG-1251 10X44T 12-SPEED
• CHAIN - SRAM RIVAL 12-SPEED
• CRANKSET - SRAM X-SYNC 46T BCD107 CHAIN RING, PRAXIS E CRANK ALLOY ISIS
• BOTTOM BRACKET - GIANT E+ SYSTEM BBSS
• RIMS - GIANT P-R2 ALLOY DISC WHEEL SYSTEM, TUBELESS READY, 22MM INNER WIDTH, 12MM THRU-AXLE
• SPOKES - SAPIM SPOKE E-LIGHT [R] RACE [F], E-BIKE OPTIMIZED
• TYRES - SCHWALBE G-ONE ALLROUND PERFORMANCE, RACEGUARD, BROWN SIDE-WALL, TUBELESS, 700X35
• EXTRAS - FENDER ADAPTER
